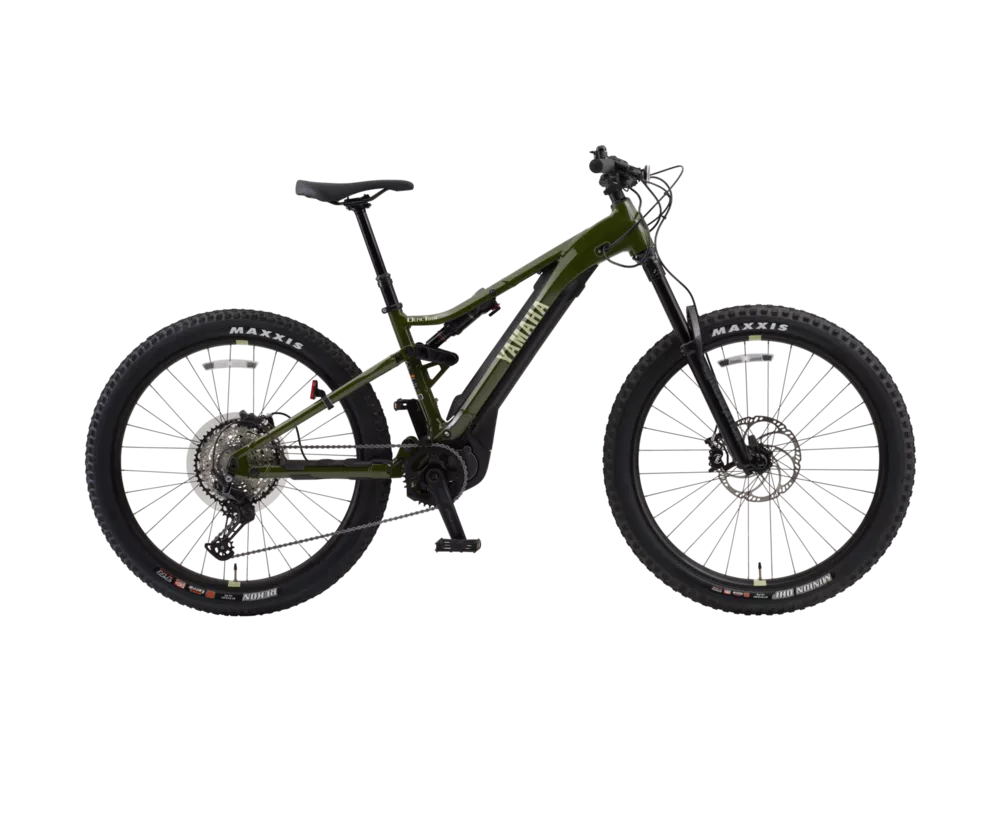

Hear the schralp of your tires gripping the dirt but keep the whining at home. Equipped with the super silent PW-X3 drive unit, the YDX-MORO 05 makes no excuses for being one of the best All-Mountain E-Bikes out there to unleash your adventure.
Geometry
Geometry Chart:
Small
Medium
Large
A
TOP TUBE (mm)
572
619
666
B
REACH LENGTH (mm)
393
437
482
C
STACK HEIGHT (mm)
616
625
629
D
STANDOVER HEIGHT (mm)
741
751
759
E
HEAD TUBE LENGTH (mm)
110
120
125
F
HEAD TUBE ANGLE
66.3°
66.3°
66.3°
G
SEAT TUBE ANGLE
70.3°
70.3°
70.3°
Sizing
Sizes:
Size
Rider Height
Small
5’2″-5’6″
Medium
5’6″-5’11”
Large
5’9″-6’7″
Specs
Motor
YAMAHA PW-X3
Pedals
Included
Battery
Yamaha 500Wh with Charge-life indicator and Self-diagnosis displayAnti-Vibration Mounting PlateWeight: 6.61 lbs500Wh36V 4-hour charge time
