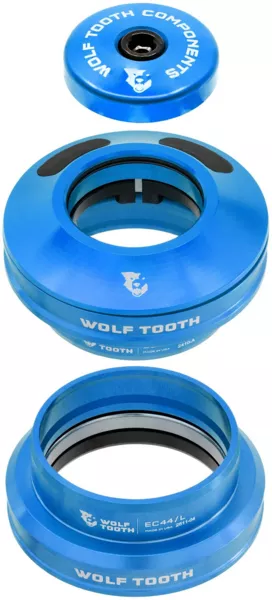

Built for riders who prefer the flexibility of semi-internal (under the stem) routing, our Headsets for Semi-Internal Routing were developed for frames using an EC44 headset. These headsets are equipped with a custom seal at the cable entry ports that eliminates contamination from moisture and debris, maximizing bearing life.
Machined from aircraft-grade 6061 aluminum at Wolf Tooth in Minnesota, USA.
Wolf Tooth Premium EC44 Aero Headsets for Semi-Internal Routing are designed and machined right here in our Minnesota headquarters with aircraft-grade 6061 aluminum. They are designed to have an ultra-low stack height, to be lightweight, and durable. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. Available in a seven Color Shop anodized finishes. Premium Headsets with Enduro stainless steel bearings carry a lifetime warranty on the bearings.
Designed for semi-internal cable routing to allow the use of standard 1-1/8″ stems and headset spacers with bikes that use an EC44 upper / lower headset and a 1-1/8″ to 1.5″ tapered steerer tube
Only compatible with frames designed for through-the-headset routing
Use the compression plug that comes with your fork
Sold as a complete upper and lower EC44 Headset
Enduro stainless steel bearings included
Includes 2x 0.3mm plastic shims to help dial in headset compression if necessary
Material: 6061 Aluminum
Total Stack Upper Headset – 20.1mm
Total Stack Lower Headset – 12.25mm
For Headtube Internal Diameter – 44mm
Cup External Diameter – 56.5mm
52mm 36×45 Upper And Lower Bearings
Upper Headset: 73 g
Lower Headset: 47 g
Premium stainless steel Enduro bearings for ultimate corrosion protection
Six cable ports (two hydraulic brake lines + four mechanical cable lines)
Available in seven Wolf Tooth anodized colors to match other Wolf Tooth components
Custom-molded captive rubber seal at the cable entry ports that stops any water or debris from getting in with the brake hoses or shift cables
Custom lip seal on the outside of the headset cap interfaces with the frame or EC44 cup to stop any water or debris from getting into upper the bearing
Custom overmolded dual-lip crown race seal interfaces with frame to stop any water or debris from getting into the lower bearing
