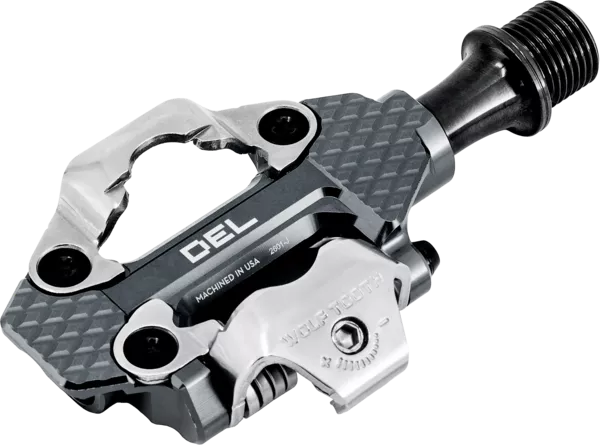

DEL MK0 takes our race winning gravel platform to another level. DLC-coated Ti axles, PVD-coated Ti hardware, and aggressive machining drops 43g of weight. At 174g per pair, they’re purpose-built to rack up wins in the Lifetime Grand Prix, Gravel Earth, and UCI Gravel Series. DEL MK0 are substantially lighter, thinner, and offer better power transfer than any other 2-bolt clipless pedal. Ever.
MK0 components are proudly machined at Wolf Tooth HQ in Minnesota, USA.
Unrivaled Power Transfer
MK0 DEL Gravel Race Clipless Pedals feature a large platform area that maximizes pedal to shoe contact for unrivaled power transfer in a race-specific design. They feel more like a road shoe and pedal setup, rather than your run of the mill MTB shoe and XC pedal combination.
Adjustable Q Factor
Adjusting the Q factor (pedal stance width) moves the pedal toward or away from the center of the bike. MK0 DEL Gravel Race Clipless Pedals feature patent-pending Q factor adjustment options of 51, 55, and 59mm to fine-tune your fit, and ship set at 55mm. Adjusting Q factor is simple enough to do at home.
Wolf Tooth MK0 DEL Gravel Race Clipless Pedals are the lightest full-featured SPD-compatible pedals with a total weight of 174g. Extensive CNC machining is used to achieve the lowest possible weight while still maintaining excellent strength. They use a one-sided design for peak speed and consistent performance in gravel races. They feature a large platform for maximum power transfer and a connected feel that approaches that of a road pedal. The one-sided design features an open center between the binding cages for mud shedding. It has all the advantages of a road pedal, but with a shoe and cleat system that works in all conditions.
The MK0 DEL Gravel Race Clipless Pedals have an adjustable Q factor of 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacer. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
Thinner than the competition at 14.5 mm (compared to HT M2T at 17.5 mm, Shimano XTR 9200 at 16.5 mm, Xpedo MF8 at 17 mm and Look X-One G Ti at 18 mm)
Lighter weight than the competition at 174 g per set (compared to HT M2T at 260 g, Shimano XTR 9200 at 316 g, Xpedo MF8 at 220 g, and Look X-One G Ti at 240 g)
Larger platform area for power transfer than the competition at 559 mm² (compared to HT M2T at 357 mm², Shimano XTR 9200 at 144 mm² and Xpedo MF8 at 46 mm²)
Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately). Pedals ship in 55 mm position
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design with three cartridge bearings and one igus bushing for smooth operation and long life
Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms
NOTE: Using any titanium axle pedal with a titanium crankset will increase the risk of the pedal axle becoming permanently stuck in the crank arm. Always use anti-seize but be aware that this will not completely eliminate the risk
All SPD pedals benefit from simple regular maintenance. For best performance, apply a drop of oil to the rear binding every 50 hours of riding or if you notice higher than normal clip in/out force. See the service guide for more information
Compatible with SPD cleats; Wolf Tooth cleats included
Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kids’ bikes and vintage bikes may have smaller incompatible threads
