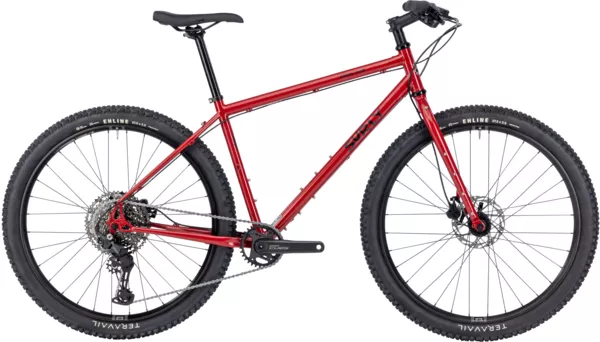

As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.
– 100% Surly Chromoly frame, main triangle is double-butted; 1-1/8″ threadless Chromoly fork – Rack, fender, and four sets of three-pack mounts – Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category – Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8″ tires (27.5 x 2.6″ with fenders)
Geometry
Sizes:
Frame Size
X-Small
Small
Medium
Large
X-Large
Stack (mm)
553
567
576
590
609
Reach (mm)
376
397
419
435
444
Head Tube Length (mm)
110
120
130
145
165
Head Tube Angle (degree)
70.0°
71.0°
71.0°
71.0°
71.0°
BB Height (mm)
–
–
–
–
–
BB Drop (mm)
60
60
60
60
60
Trail (mm)
–
–
–
–
–
Fork Length, Full (mm)
420
420
420
420
420
Fork Rake / Offset (mm)
45
45
45
45
45
Front Center (mm)
–
–
–
–
–
Chainstay Length (mm)
435
435
435
435
435
Wheelbase (mm)
1032
1047
1073
1093
1109
Top Tube Length, Horizontal (mm)
545
570
595
615
630
Bike Standover Height (mm)
709
751
780
812
846
Seat Tube Length (mm)
336
406
457
508
559
Seat Tube Angle (degree)
73.0°
73.0°
73.0°
73.0°
73.0°
Sizing
Sizes:
Frame Size
Rider Height (cm)
Rider Height (in)
X-Small
152 – 165
5’0″ – 5’5″
Small
162 – 173
5’4″ – 5’8″
Medium
170 – 183
5’7″ – 6’0″
Large
180 – 190
5’11” – 6’3″
X-Large
188 – 198
6’2″ – 6’6″
