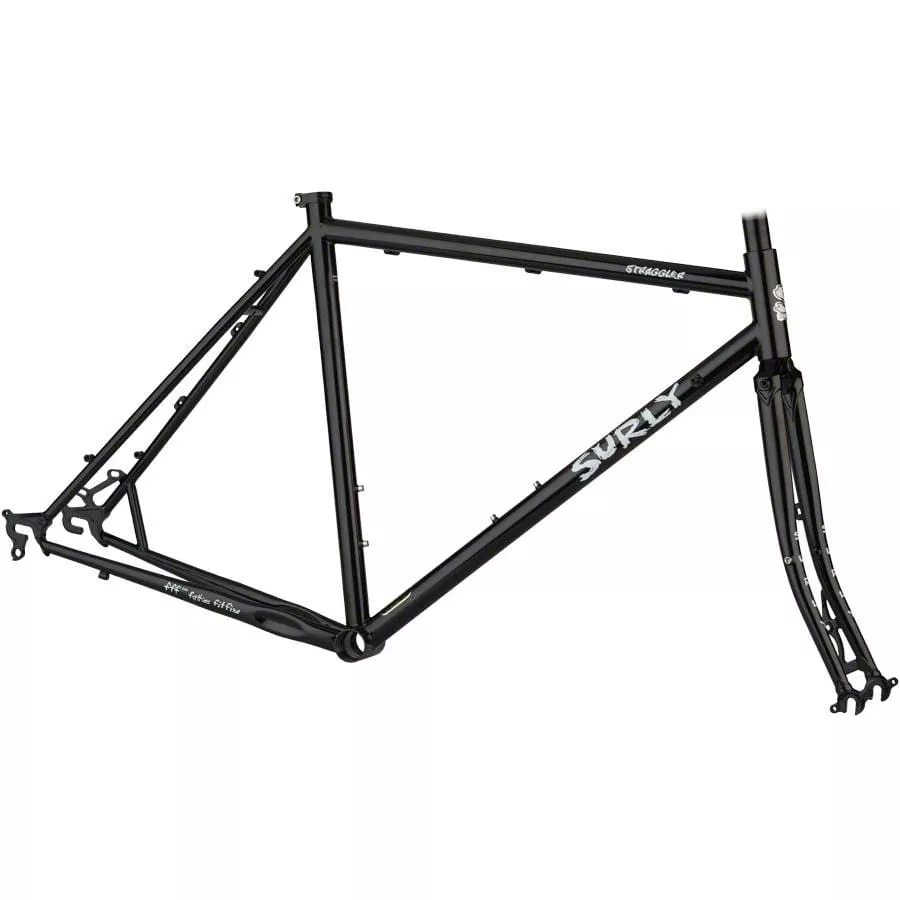

Surly Straggler 650b Frameset Gloss Black

Surly Straggler 650b Frameset Gloss Black

Original price was: $389.40.Current price is: $299.24.

78 in stock

SKU: FM1842 Category:

GEOMETRY

Frame measurements (mm) 38cm 42cm 46cm 50cm 52cm 54cm 56cm 58cm
A. BB Drop 54 54 54 54 54 54 54 54
B. Chainstay Length 405 405 405 405 405 410 410 410
C. Fork Length – Axle to Crown 380 380 380 380 380 380 380 380
D. Fork Offset 44 44 44 44 44 44 44 44
E. Head Tube Angle (deg) 69.5 70.0 71.0 71.5 72.0 72.0 72.0 72.0
F. Headtube Length 85 100 110 120 130 145 160 185
G. Reach 371 369 371 383 386 392 402 410
H. Seat Tube Angle (deg) 75.5 74.5 74.0 74.0 73.0 72.5 72.5 72.5
I. Seat Tube Length – Center to Top 380 420 460 500 520 540 560 580
J. Stack 483 498 511 523 534 548 563 586
K. Standover 704 726 751 776 789 806 822 844
L. Top Tube Length (Effective) 500 510 520 535 550 565 580 595
M. Wheelbase 980 978 977 988 990 1005 1020 1035

* All dimensions are preliminary and subject to change
