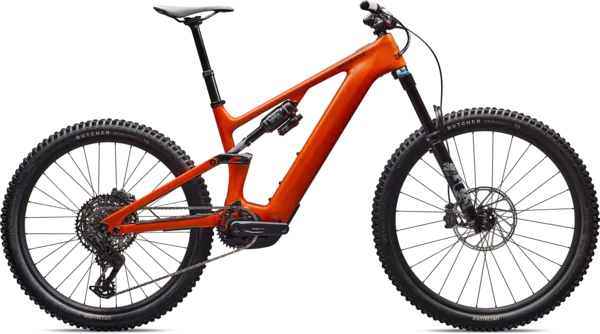

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you’re SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Geometry
Frame Size
S2
S3
S4
S5
S6
Stack (mm/in)
618mm (24.3″)
626mm (24.6″)
638mm (25.1″)
652mm (25.7″)
667mm (26.3″)
Reach (mm/in)
435mm (17.1″)
455mm (17.9″)
480mm (18.9″)
505mm (19.9″)
535mm (21.1″)
Headtube Length (mm/in)
95mm (3.7″)
103mm (4.1″)
117mm (4.6″)
132mm (5.2″)
149mm (5.9″)
Headtube Angle (degrees)
64.5°
64.5°
64.5°
64.5°
64.5°
BB Height (mm/in)
350mm (13.8″)
350mm (13.8″)
350mm (13.8″)
350mm (13.8″)
350mm (13.8″)
BB Drop (mm/in)
29.5mm (1.2″)
29.5mm (1.2″)
29.5mm (1.2″)
29.5mm (1.2″)
29.5mm (1.2″)
Trail (mm/in)
132mm (5.2″)
132mm (5.2″)
132mm (5.2″)
132mm (5.2″)
132mm (5.2″)
Fork Length (mm/in)
577mm (22.7″)
577mm (22.7″)
577mm (22.7″)
577mm (22.7″)
577mm (22.7″)
Fork Rake/Offset (mm/in)
44mm (1.7″)
44mm (1.7″)
44mm (1.7″)
44mm (1.7″)
44mm (1.7″)
Front Center (mm/in)
765mm (30.1″)
789mm (31.1″)
820mm (32.3″)
851mm (33.5″)
888mm (35.0″)
Chainstay Length (mm/in)
435mm (17.1″)
435mm (17.1″)
435mm (17.1″)
435mm (17.1″)
435mm (17.1″)
Wheelbase (mm/in)
1200mm (47.2″)
1223mm (48.1″)
1254mm (49.4″)
1286mm (50.6″)
1323mm (52.1″)
Top-Tube Length (mm/in)
578mm (22.8″)
599mm (23.6″)
627mm (24.7″)
655mm (25.8″)
689mm (27.1″)
Bike Standover Height (mm/in)
753mm (29.6″)
754mm (29.7″)
753mm (29.6″)
758mm (29.8″)
761mm (30.0″)
Seat Tube Length (mm/in)
390mm (15.4″)
405mm (15.9″)
425mm (16.7″)
445mm (17.5″)
465mm (18.3″)
Seat Tube Angle (degrees)
77°
77°
77°
77°
77°
Saddle Height for Effective ST Angle (mm/in)
690mm (27.2″)
735mm (28.9″)
780mm (30.7″)
825mm (32.5″)
870mm (34.3″)
Max Seatpost Insertion (mm/in)
274mm (10.8″)
289mm (11.4″)
313mm (12.3″)
337mm (13.3″)
357mm (14.1″)
Min Seatpost Insertion (mm/in)
80mm (3.1″)
80mm (3.1″)
80mm (3.1″)
80mm (3.1″)
80mm (3.1″)
Crank Length (mm/in)
155mm (6.1″)
155mm (6.1″)
155mm (6.1″)
155mm (6.1″)
155mm (6.1″)
Handlebar Width (mm/in)
780mm (30.7″)
800mm (31.5″)
800mm (31.5″)
800mm (31.5″)
800mm (31.5″)
Stem Length (mm/in)
40mm (1.6″)
40mm (1.6″)
40mm (1.6″)
40mm (1.6″)
40mm (1.6″)
Saddle Width (mm/in)
155mm (6.1″)
143mm (5.6″)
143mm (5.6″)
143mm (5.6″)
143mm (5.6″)
Seatpost Length (mm/in)
125mm (4.9″)
170mm (6.7″)
190mm (7.5″)
190mm (7.5″)
190mm (7.5″)
Specs
Frame
All new Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
Rear Shock
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
