When you can only have one bike, and your mission is to ride that bike into oblivion then this is the one. From manicured bike parks to blown out loamy berms, alpine lines to backyard trails, the Bronson is as at home in the air as it is in the dirt. For the rider with a Peter Pan disposition or who wants to get into a pan flat tabletop position, the Bronson encourages bad behavior.
Geometry
Sizes:
Frame Size
X-Small
Small
Medium
Large
X-Large
Geometry Position
High / Low
High / Low
High / Low
High / Low
High / Low
Reach (mm)
405 / 402
430 / 427
455 / 452
475 / 472
500 / 497
Stack (mm)
594 / 595
617 / 619
626 / 628
635 / 637
649 / 651
Head Tube Angle
64.7° / 64.5°
64.7° / 64.5°
64.7° / 64.5°
64.7° / 64.5°
64.7° / 64.5°
Seat Tube Length (mm)
370 / 370
380 / 380
405 / 405
430 / 430
460 / 460
Front Center (mm)
722 / 722
757 / 757
786 / 786
811 / 810
842 / 842
BB Height (mm)
344 / 341
344 / 341
344 / 341
344 / 341
344 / 341
BB Drop (front) (mm)
10 / 13
29 / 32
29 / 32
29 / 32
29 / 32
BB Drop (rear) (mm)
10 / 13
29 / 32
29 / 32
29 / 32
29 / 32
Wheelbase (mm)
1149 / 1154
1188 / 1189
1221 / 1222
1249 / 1249
1284 / 1285
Rear Center (mm)
427 / 432
431 / 432
435 / 436
438 / 439
442 / 443
Head Tube Length (mm)
110 / 110
100 / 100
110 / 110
120 / 120
135 / 135
Top Tube Length (mm)
536 / 542
570 / 575
599 / 604
623 / 627
653 / 657
Seat Tube Angle
77.6° / 76.9°
77.2° / 76.7°
77.1° / 76.6°
76.9° / 76.5°
76.7° / 76.4°
Standover Height (mm)
701 / 698
709 / 706
731 / 727
729 / 726
728 / 725
Sizing
Sizes:
Frame Size
Rider Height (cm)
Rider Height (in)
X-Small
142 – 155
4’8″ – 5’1″
Small
155 – 165
5’1″ – 5’5″
Medium
165 – 175
5’5″ – 5’9″
Large
175 – 185
5’9″ – 6’1″
X-Large
185 – 193
6’1″ – 6’4″
Specs
Pedals
Sold Separately
Frame

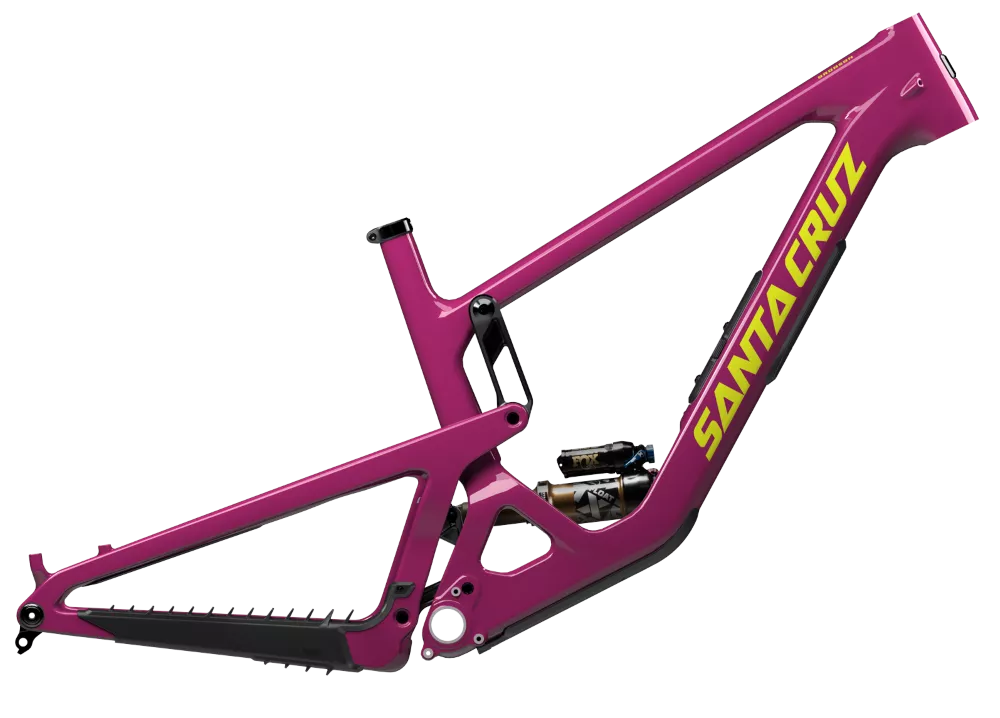

Carbon CC MX 150mm Travel VPP™
Rear Shock
FOX Float X Factory, 230×57.5
* Subject to change without notice.
Part Numbers
Option
UPC
MPN
Kalimotxo / Large / 29-inch front / 27.5-inch rear
192219487489
68-25314-4-868-7499
Translucent Root Beer / Medium / 29-inch front / 27.5-inch rear
