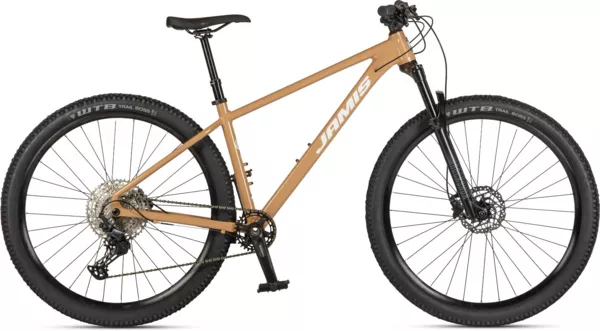

JamisHighpoint A1 V2

Details

Specs

Part Numbers

Reviews

Details

TRUE ALL-AROUNDER
Hardtails are special. Sure, they don’t have the plushness of their full-suspension siblings, but they more than make up for it in the fun department. And if you’re not having fun then what’s the point? Highpoint V2 takes this a step further with updated frame geometry including longer reach on both models, UDH design on the A1 frame, and key spec updates.¬†

FRAME MATERIALS
Flow trails? Tech singletrack? Sketchy neighborhood jumps? Yes, yes, and definitely yes. Highpoint V2 delivers the goods with a freshly updated 6061 alloy frame built to take a beating.

MODEL HIGHLIGHTS

– 606 1triple-butted aluminum main tubes, UDH derailleur hanger
– Rock Shox Judy Gold RL, Solo Air compression, external rebound, lockout, 120mm travel
– MTB tubeless ready double wall alloy disc rims, Shimano TC500 sealed bearing hubs
– TransX dropper seatpost 100mm travel
– Shimano 32T Crankset, Deore 12-speed shifter
– Shimano MT200 hydraulic disc brakes w/ 160mm rotors
– Jamis XC alloy handlebar and stem
– WTB Volt Saddle

Geometry

Frame Size	15.5-inch	17-inch	19-inch	21-inch
Top Tube Horizontal (in/mm)	23.5/598	24.5/623	25.5/647	26.5/672
Head Tube Angle (degree)	68°	68°	68°	68°
Seat Tube Angle (degree)	74°	74°	74°	74°
Rear Centre (in/mm)	17.3/440	17.3/440	17.3/440	17.3/440
Wheelbase (in/mm)	44.0/1126	45.0/1152	46.0/1178	47.0/1204
Bottom Bracket Drop (in/mm)	2.4/60	2.4/60	2.4/60	2.4/60
Head Tube Length (in/mm)	3.5/90	3.9/100	4.3/110	4.7/120
Standover Height (in/mm)	30.0/763	31.5/799	32.9/836	34.2/868
Stack (in/mm)	24.7/628	25.1/637	25.4/646	25.8/656
Reach (in/mm)	16.5/418	17.3/440	18.2/462	19.1/484

Specs

Bottom Bracket	Shimano BSA
Frame	6061 triple-butted aluminum main tubes, 1.5 – 1 1/8″ tapered head tube, 12x148mm thru axle dropout, UDH derailleur hanger
Frame Material	6061 triple-butted aluminum
Fork	Rock Shox Judy Gold RL, Solo Air compression, external rebound, lockout, 30mm alloy stanchions, magnesium lowers, 15x110mm axle, 120mm travel
Rims	MTB tubeless ready double wall 23mm internal alloy disc
Hubs	Shimano TC500 centerlock alloy sealed bearing
Spokes	Nickel-plated
Tires	WTB Trailboss, 29 x 2.25″
Crankset	Shimano MT511, 32T
Shifters	Shimano Deore, 1×12-speed
Rear Derailleur	Shimano Deore, 12-speed
Cassette/Freewheel	Shimano M6100, 12-speed, 10-51T
Chain	Shimano M6100, 12-speed
Brakes	Shimano MT200 hydraulic disc
Rotors	Shimano RT10 160mm
Handlebars	Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Tape/Grips	Kraton
Stem	Jamis XC alloy threadless, 31.8 x 45mm
Headset	Zero-stack internal cup, 15mm cone spacer
Seatpost	TransX dropper 31.6mm seatpost, 100mm travel Length: (15″), 125mm travel Length: (17″/19″/21″)
Saddle	WTB Volt
Pedals	MTB platform, hi-impact resin

* Subject to change without notice.

Part Numbers

Option	UPC	MPN	Store SKU
Putty / 15.5-inch / 29-inch	845436096001	03-4626BR	HIG24305782Y
Putty / 17-inch / 29-inch	845436096018	03-4627BR	HIG24784820Y
Putty / 19-inch / 29-inch	845436096025	03-4628BR	HIG24560993Y
Putty / 21-inch / 29-inch	845436096032	03-4629BR	HIG2452032Y
