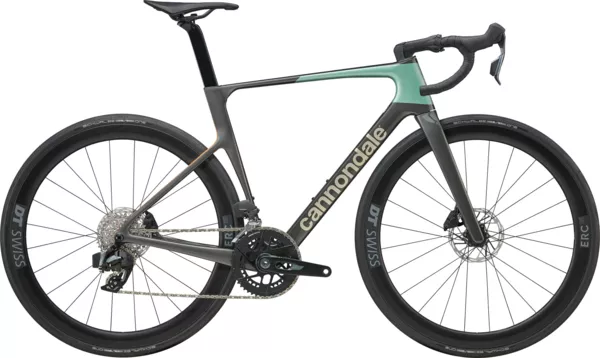

Take it up a level. The lightweight Gen 5 EVO carbon frame rolls on race-ready DT Swiss ERC LOG 45 carbon wheels, balancing light weight with ruthless aero efficiency. With SRAM’s Rival AXS wireless electronic shifting, Vision Trimax Carbon Aero bars and our Conceal stem, the SuperSix EVO 4 is ready to challenge for the top step.
Highlights
– Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort – DT Swiss ERC LOG 45 carbon road wheelset – 45mm deep, light, fast, all-around race wheels – SRAM’s workhorse Rival AXS group – precise, reliable wireless electronic shifting – Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem – ergonomic, low-drag cockpit with hidden cables – Fizik Vento Antares R7 saddle – ergonomic comfort with pressure relieving cutout
Geometry
Sizes:
Size
44cm
48cm
50cm
52cm
54cm
56cm
58cm
61cm
Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
Seat Tube Length (cm)
40
42.9
44.8
46.7
49
51
53.2
57
Top Tube Horizontal (cm)
51
52.2
52.9
53.6
54.4
56
57.7
60
Top Tube Actual
49.2
50.3
51.1
51.9
52.7
54.3
55.9
58.2
Head Tube Angle
70.9°
71.2°
71.2°
71.2°
71.2°
73.0°
73.0°
73.0°
Seat Tube Angle
74.5°
74.0°
74.0°
74.0°
74.0°
73.5°
73.0°
72.5°
Standover (cm)
69.4
71.7
73.3
75.2
77
79
81.2
84.6
Head Tube Length (cm)
8.9
10.1
11.4
13
14.3
15.4
17.8
20.9
Wheelbase (cm)
98
98.5
99.3
100.2
101
99.5
100.7
102.4
Front Center (cm)
58.2
58.6
59.4
60.2
61.1
59.5
60.7
62.4
Chain Stay Length (cm)
41
41
41
41
41
41
41
41
Bottom Bracket Drop (cm)
7.4
7.4
7.4
7.2
7.2
7.2
6.9
6.9
Bottom Bracket Height (cm)
26.9
26.9
26.9
27.1
27.1
27.1
27.4
27.4
Fork Rake (cm)
5.5
5.5
5.5
5.5
5.5
4.5
4.5
4.5
Trail (cm)
6
5.8
5.8
5.8
5.8
5.8
5.8
5.8
Stack (cm)
49.5
50.8
52
53.2
54.5
56.5
58.5
61.5
Reach (cm)
37.3
37.6
37.9
38.3
38.7
39.3
39.8
40.6
Axle-to-Crown (cm)
37.6
37.6
37.6
37.6
37.6
37.6
37.6
37.6
Sizing
Sizes:
Frame Size
Rider Height (cm)
Rider Height (in)
48cm
160 – 170
5’3″ – 5’7″
51cm
165 – 175
5’5″ – 5’9″
54cm
170 – 180
5’7″ – 5’11”
56cm
177 – 185
5’10” – 6’1″
58cm
182 – 193
6’0″ – 6’4″
61cm
190 – 200
6’3″ – 6’7″
Specs
Bottom Bracket
SRAM DUB BSA
Frame
SuperSix EVO Carbon, Gen 5, integrated cable routing, 12×142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Frame Material
Carbon
Fork
SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8″ to 1-1/4″ Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
